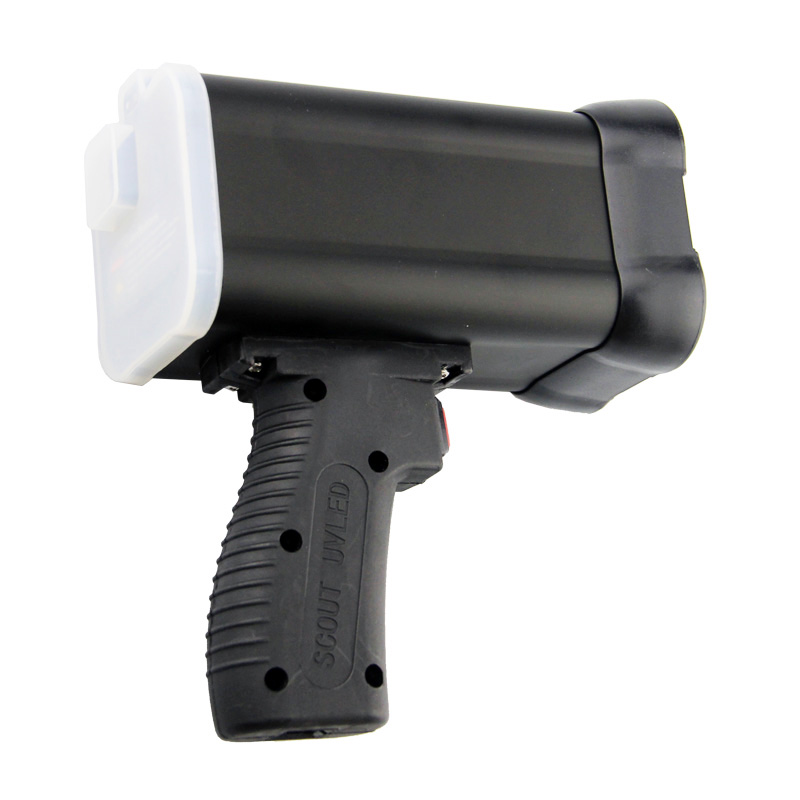

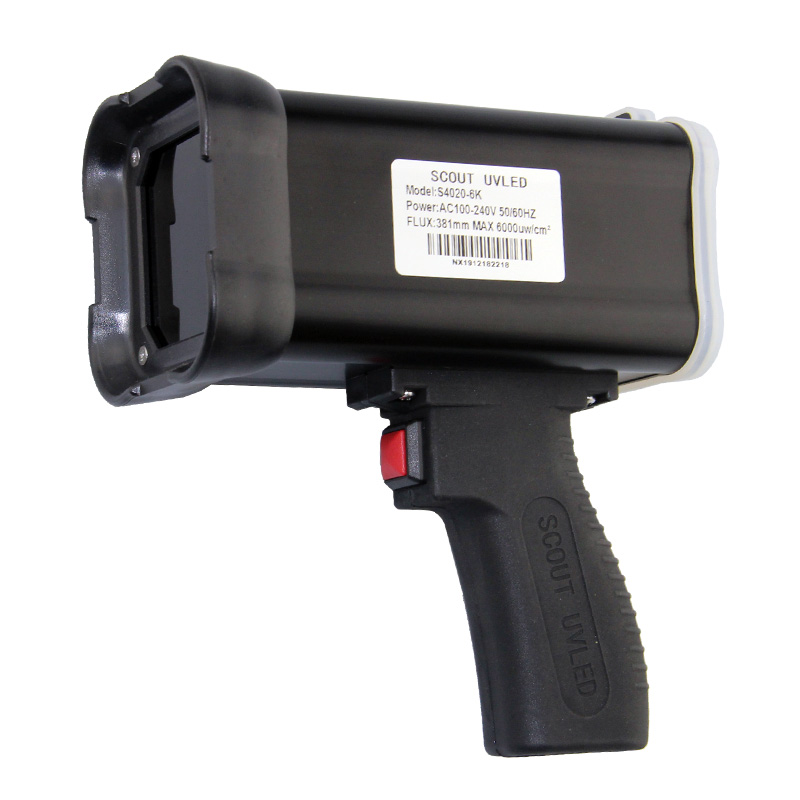

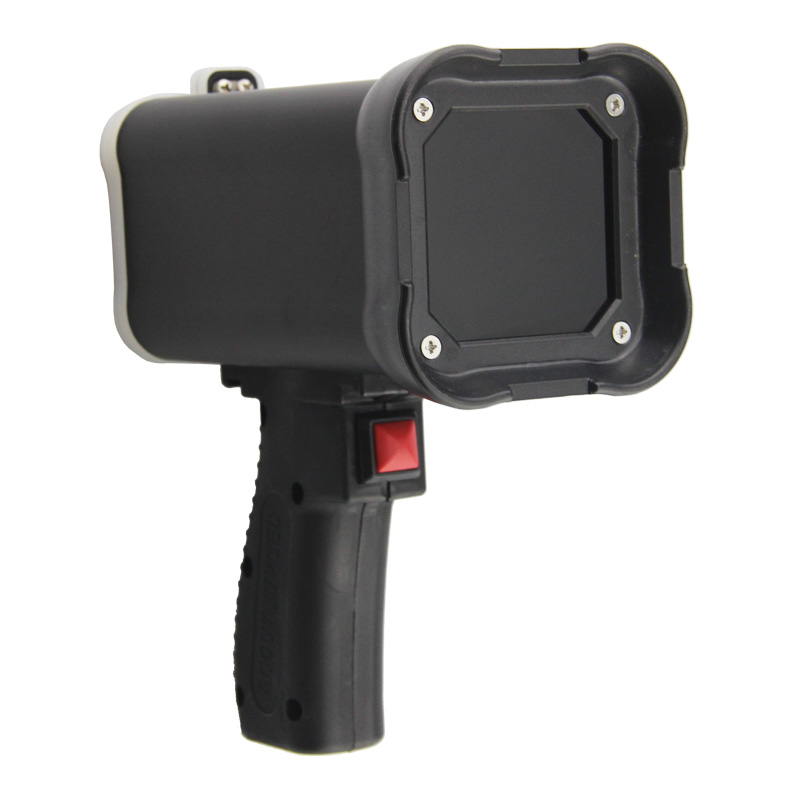

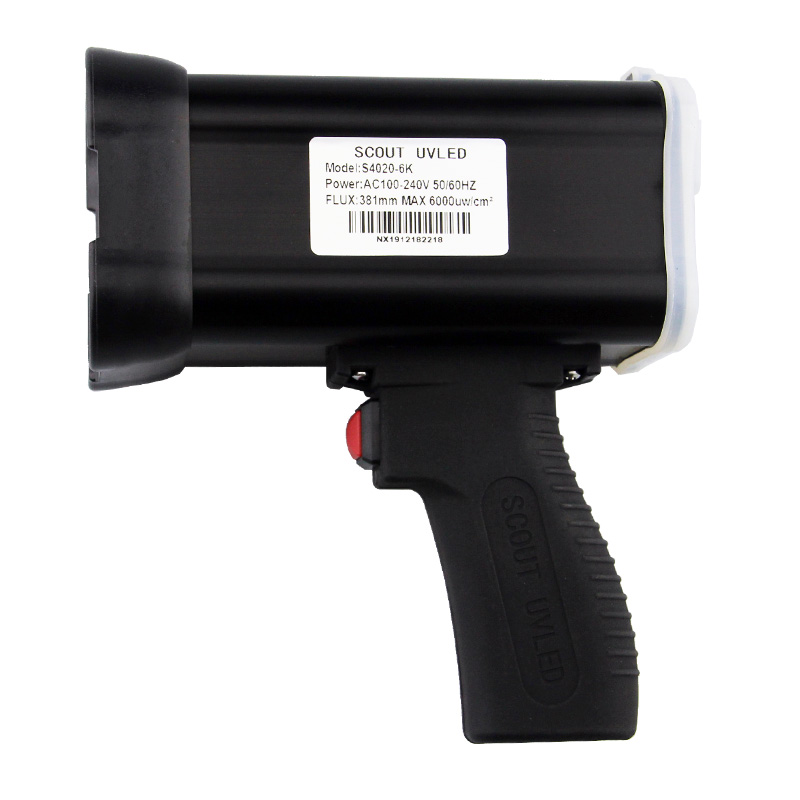

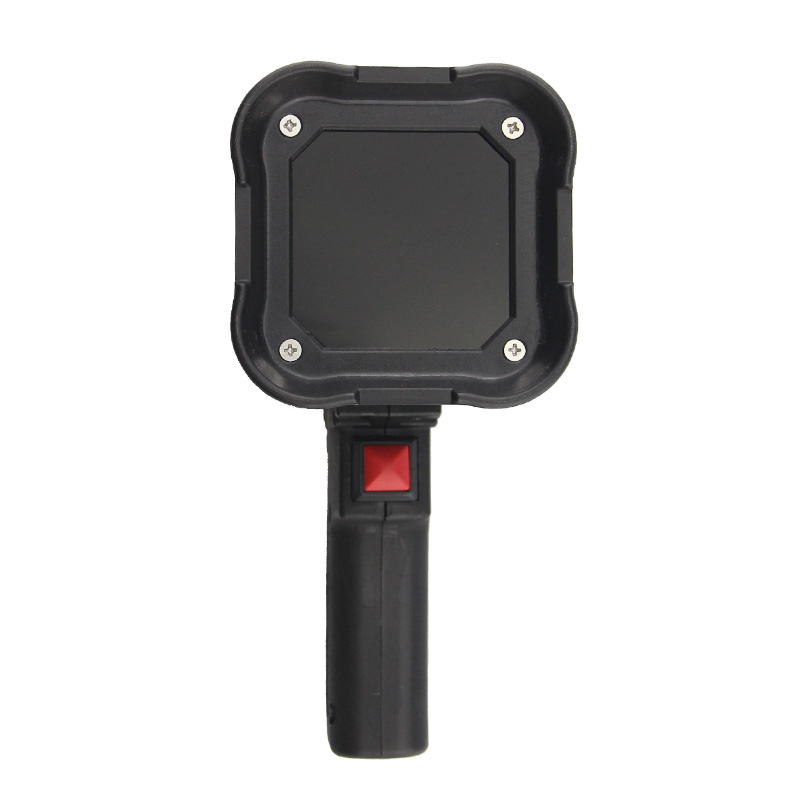

Hand-held UV inspection lamp S Series are kind of device that is a tool to help achieving efficient detection through professional detection methods like Penetrant Testing and Magnetic Particle Testing (PT & MT). Hand-held UV inspection lamp is widely used in different fields such as: Non-destructive Testing, Degreasing Testing, Pharmacentical Raw Material Testing, Ore/Jewelry Inspection, Criminal Inspection, Fluorescent Leak Detection etc.



Hand-held UV inspection lamp S Series are LED black lights developed on the basis of SCOUT UVLED’s professional electronic technology and extensive experience. It is designed to replace the existing commonly used 400W/100W mercury vapor type UV lamp and completely overcome the many shortcomings of the previous generation of black light.

hand-held uv inspection lamp
meets Nadcap audit criteria
NDT UV lamps
Portable UV Lamps
flaw detection lamp
NDT Black Light
NDT Inspection Lamp
UV Inspection Lamp
uv inspection lamp
UV Inspection Lamps

The advantages of hand-held UV inspection lamp are as follows:

  • The peak wavelength of the UV LED is limited to 365nm ± 10nm at -40°C to 120°C, which meets the requirements for UV-B/UV-C in ASTM E3022, 1EC/EN 62471 Photobiological Safety Standard.
  • Conform to the requirements of GB/T 15822. 3-2005 NDT magnetic particle inspection standard.
  • Zero maintenance cost, no wearing parts.
  • Long service life: The average life of more than 30000 hours.
  • Professional optical design: Made of quartz and optical glass lens, excellent weather resistance! Non-PMMA/PC material (PMMA/PC is commonly known as Plexiglass; the UV lens will be used for a period of time). It will become cloudy afterwards and affect the light transmittance).
  • Excellent heat dissipation design, reasonable pneumatic layout: The temperature rise of the filter glass for continuous operation is <15 “C, and the temperature rise of the lamp housing is <10°C.
  • No need to preheat.
  • Energy saving and environmental protection: The total power is only 12 watts.
  • UV LED and optical lens part of the isolation seal, dust and liquid cannot enter.
  • No interference from strong magnetic field.
  • Wide voltage power supply design, without the need to install a regulator.
